converting nVIDIA GeForce / GeForce 2 into Quadro / Quadro 2
Pro
© www.kbench.com
nVIDIA has implemented many features into the GeForce chip. For marketing purposes
these are subdivided into four segments which can only be used if the correct
PCI ID is selected. The GeForce exists of the following sets: NVxx, NVxxDDR, NVxxBR,
NVxxGL whereas xx stands for 10 - GeForce, 11 - GeForce2 MX and 15 - GeForce2
The difference between NVxx / NVxxBR and NVxxDDR / NVxxGL is just the RAM interface.
Although you can modify this setting too it won't give you any utility.

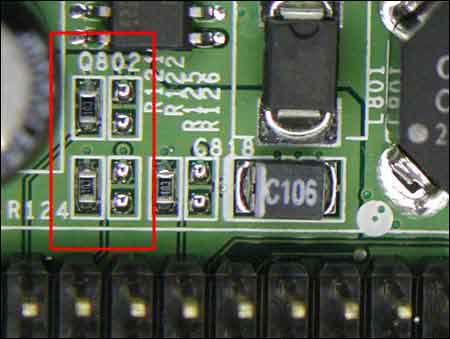

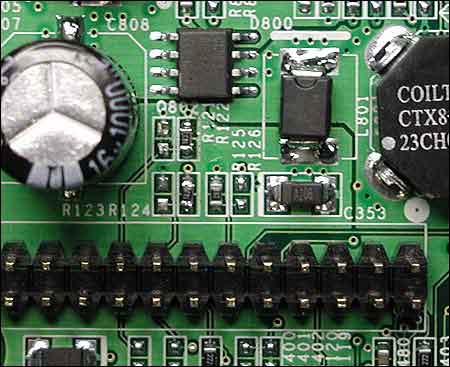

The selection of the PCI ID can be done by setting voltage levels of the BIOS
chip on the graphics card. The procedure is mostly the same on all nVIDIA based
cards because almost all manufacturers use the reference design by nVIDIA. You
only have to adjust two 10kOhm resistors on the board.
see also: converting TNT 2 / Vanta into TNT 2 Ultra
/ M64
| Feature | GeForce NV10 |
Quadro NV10GL |
GeForce2MX NV11 |
Quadro2MXR NV11GL |
GeForce 2 NV15 |
Quadro 2 NV15GL |
| HW anti-aliased lines | No | Yes | No | No | No | Yes |
| HW anti-aliased points | No | Yes | No | No | No | Yes |
| Shared Back Buffer | No | Yes | No | Yes | No | Yes |
| 3D Windows Clipping | No | Yes | No | Yes | No | Yes |
| 128 MB Frame Buffer | No | Yes | No | Yes | No | Yes |
| nVidia Shading Rasterizer | No | No | Yes | Yes | Yes | Yes |
| TwinView dual display | No | No | Yes | Yes | No | No |
| RAM interface | SD | DDR | SD | DDR | SD | DDR |
|
||||
| NV10 | NV10BR | NV10DDR | NV10GL | |
| NV11 | NV11BR | NV11DDR | NV11GL | |
| NV15 | NV15BR | NV15DDR | NV15GL | |
| Pin 16 | always connected to ground | |||
| Pin 18 | +0.0V | +0.0V | +3.3V | +3.3V |
| Pin 19 | +0.0V | +3.3V | +0.0V | +3.3V |
| Video Card | Example | Resistor Shift |
| GeForce 2 GTS (using NVIDIA's reference design) |
ASUS V7700 GeForce 2 GTS Chaintech GeForce 2 GTS 64MB Creative Labs 3D Blaster Annihilator 2 ELSA GLADIAC GeForce 2 GTS GUILLEMOT HERCULES 3D Prophet II Leadtek WinFast GeForce 2 GTS MagicPro GeForce 2 GTS 64MB |
R121 -> R122 R123 -> R124 |
| GeForce 2 MX (using NVIDIA's reference design) |
ASUS V7100 GeForce 2 MX Gainward CARDEXpert GeForce 2 MX Leadtek WinFast GeForce 2 MX Sparkle SP6800 GeForce 2 MX |
R121 -> R122 R123 -> R124 |
| GeForce DDR (using NVIDIA's reference design) |
ASUS V6800 GeForce DDR ASUS V6800 Pro64 GeForce DDR 64MB Chaintech RI71 GeForce DDR 64MB Creative Labs 3D Blaster Annihilator Pro ELSA ERAZOR X2 GUILLEMOT HERCULES 3D Prophet DVI DDR Leadtek WinFast GeForce DDR Leadtek WinFast GeForce DDR revB Sparkle Geforce DDR |
R102 -> R98 |
| GeForce SDR (using NVIDIA's reference design) |
Chaintech RI70 GeForce SDR Creative Labs 3D Blaster Annihilator Leadtek WinFast GeForce SDR |
R101 -> R97 R102 -> R98 |
| Others (no NVIDIA's reference design etc.) |
ASUS V6600 GeForce SDR | R64 -> R63 R66 -> R65 |
| ASUS V6600 Pro64 GeForce SDR 64MB | R49 -> R48 R47 -> R51 |
|
| ASUS 6800 Deluxe GeForce DDR | R64 -> R63 | |
| ELSA ERAZOR X GeForce SDR |
R101 -> R97 |
|
| GUILLEMOT HERCULES 3D Prophet
GeForce SDR GUILLEMOT HERCULES 3D Prophet GeForce SE SDR |
R101 -> R97 R102 -> R98 R103 -> trash |
