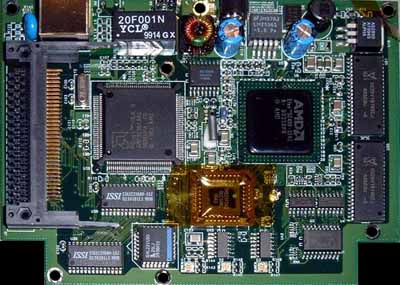

Pictures of Apple AirPort (identical to Lucent RG-1000) device:
For a full description see this page
|
AMD Elan SC400-33AC Fusion series Embedded low power i486 CPU core (w/o floating point unit) Cache, MMU, memory controller (DRAM controller, chip select etc.) PIC, timer (standard PC components, I/O ports) etc. Serial port (standard COM1 port at 0x3F8 / IRQ 4) PCMCIA controller (i82365 compatible) |
||||||||||||
|
AMD PCnet ISA II (Am79C961AKC) ISA bridge |
||||||||||||
| AMD AM29F040B | 512kBit x 8 flash ROM (= 512kB) | ||||||||||||
| ISSI IS61C256 | 32kBit x 8 static ram (= 32kB) shared memory for communication w/ ethernet controller |
||||||||||||
